EXBOX.CTRL A/B SELECTOR




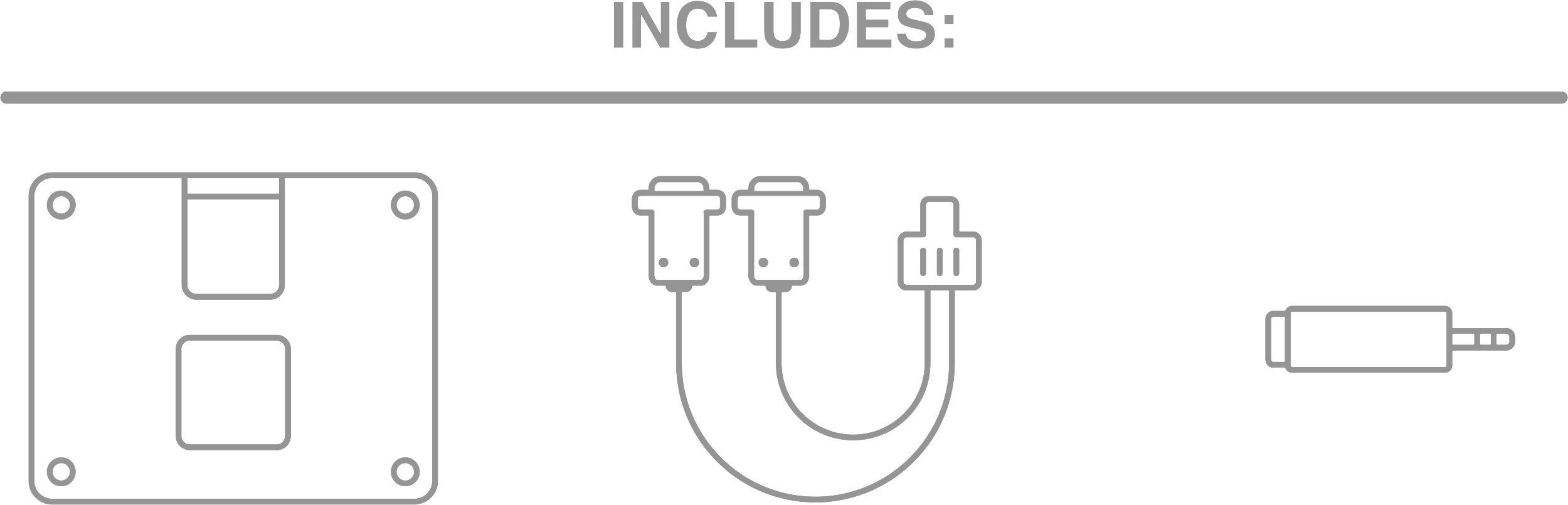

Built with touring in mind for the DirectOut EXBOX.BLDS MADI Redundancy Switch.

Taking advantage of the EXBOX.BLDS's built-in GPIO D-Sub connectors, this unit is the perfect accessory for your redundancy switch.

Designed for Tour

Monitor and Switch Systems Remotely
Connect to the DirectOut EXBOX.BLDS Using Standard Ethernet Cable

Identify Active System at a Glance
Unit Illuminates Green or Red to Indicate Selected State

Switch State Confidently and Securely
Durable Cherry-MX Key with Debounce Technology Ensures Accurate Switching

Perform Hands Free Switching
Low-Profile Input Permits Connection to Compatible Footswitch (sold separately)

Extend System Redundancy
Connect Multiple Units in Parallel for Simultaneous, Multi-Station Backup Operation




Design Considerations

Functionally, my goal was to design a tour-ready and practical accessory to the DirectOut EXBOX.BLDS MADI redundancy switch. A designed intimacy facilitates the easier, more visual switching of redundant playback rigs that employ the use of this gear.

I designed the PCB with manufacturability and durability in mind, making use of SMD components wherever possible to minimize its footprint. To ensure adequate failure management and flexibility, I programmed custom software on an embedded ATTiny85 chip.

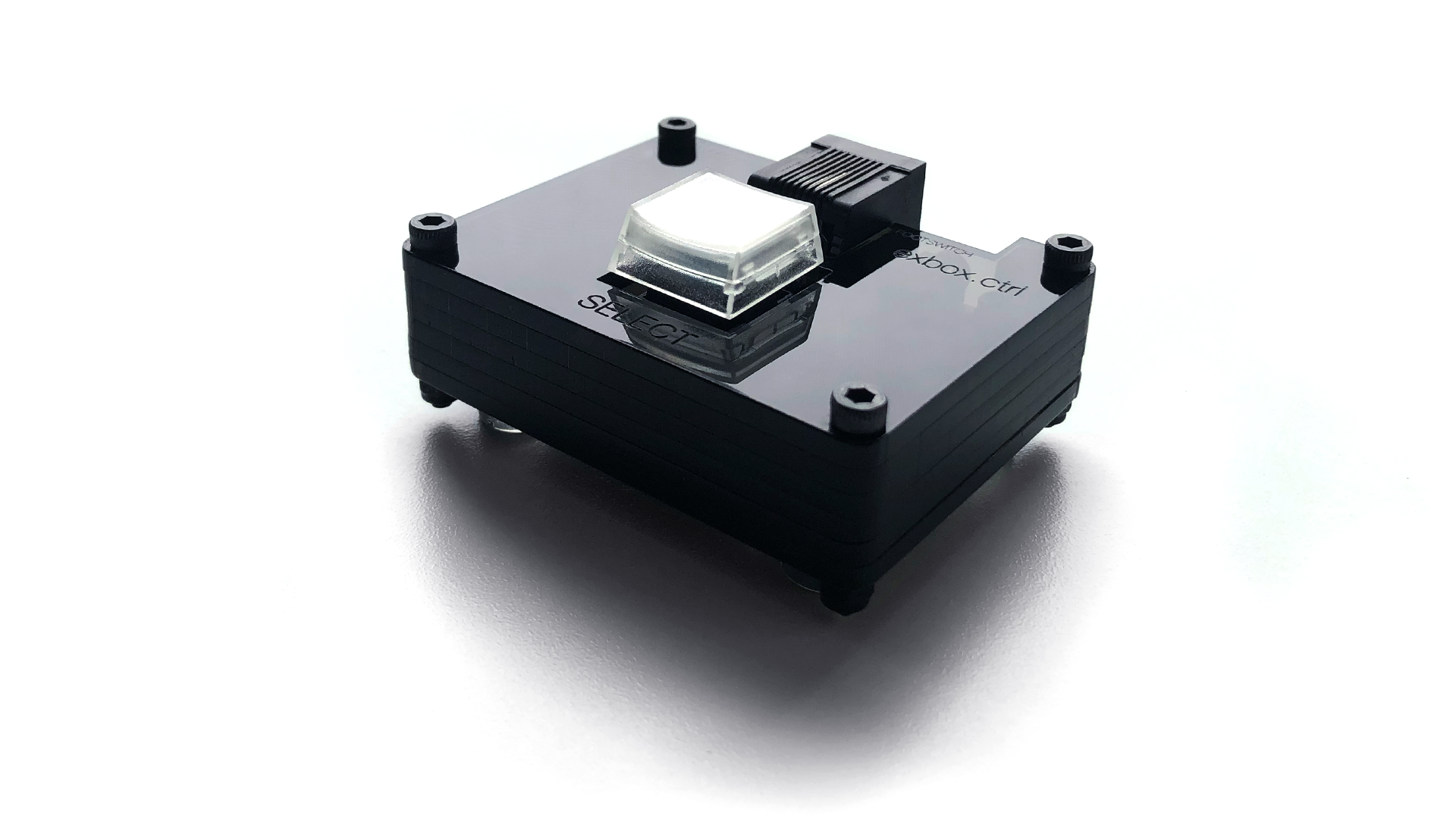

Aesthetically, my goal was to maintain a similar sleek appearance to the product it is meant to accessorize. The unit features a laser cut black acrylic case. The top and bottom layers are translucent while the support layers are opaque. This is to allow the red and green state LEDs to pass through when the unit is powered on while maintaining a solid feel.

The blue ground effect is just icing on the cake.
