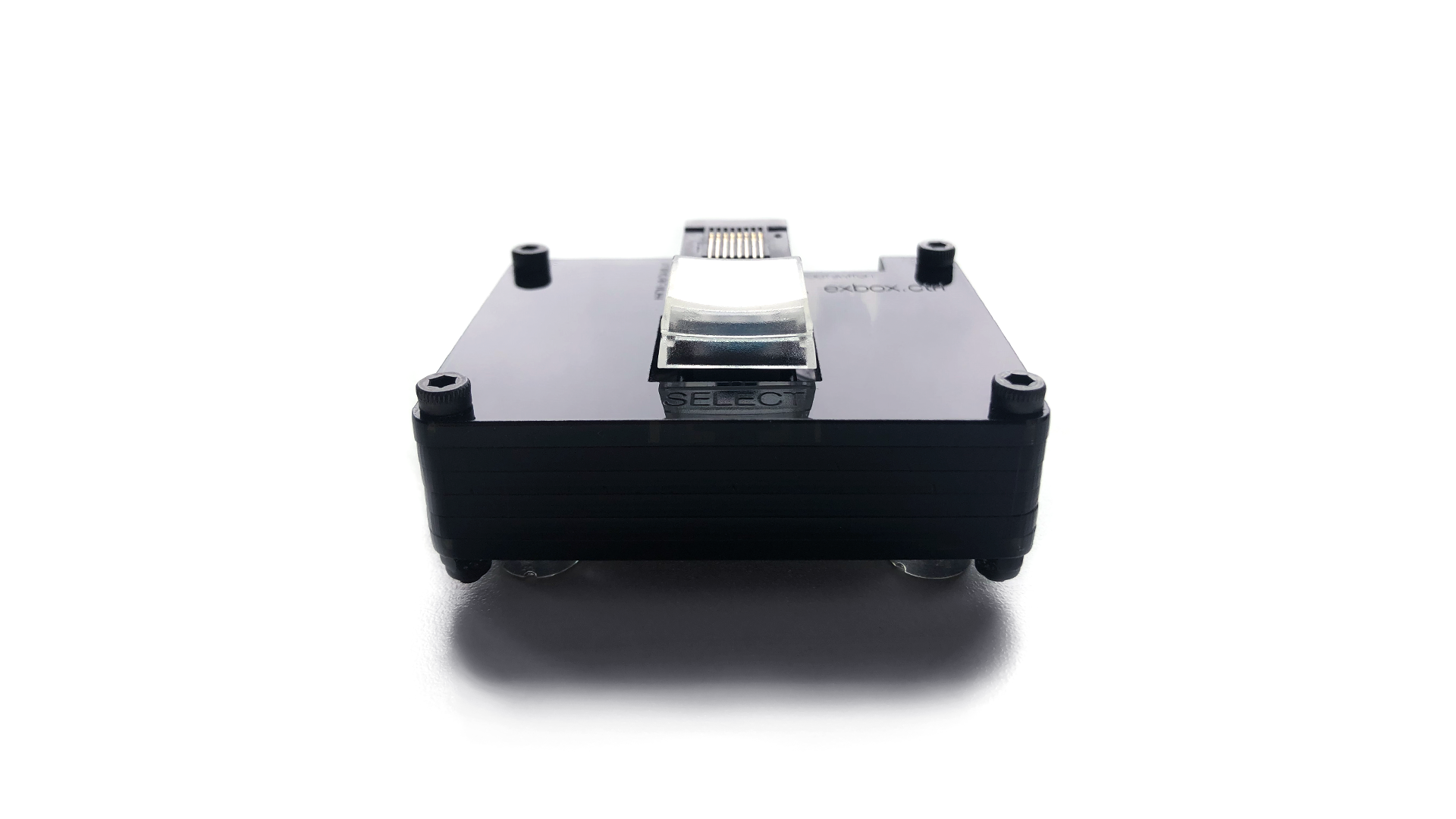

EXBOX.CTRL (FOR BLDS)



Quick Start Guide




Step 1

Plug the cable marked “GPI” into the GPI port on the BLDS and plug the cable marked “GPO” into the GPO port. On the other side, both cables should connect into the RJ45 Y splitter and merge into a single RJ45 jack.


Step 2

Run any standard RJ45 / Ethernet cable to the EXBOX.CTRL unit.


Step 3

Set the priority of your EXBOX.BLDS to manual switching. The EXBOX.CTRL will now articulate the input selection and reflect system state..


Step 4

To use the footswitch input, utilize the included adaptor to connect almost any non-latching, normally open footswitch to your unit. We like the Boss FS-5U.


Activate Your Warranty

Please visit frodes.io/warranty to activate your warranty.


For any further questions, visit our EXBOX.CTRL FAQ page.
